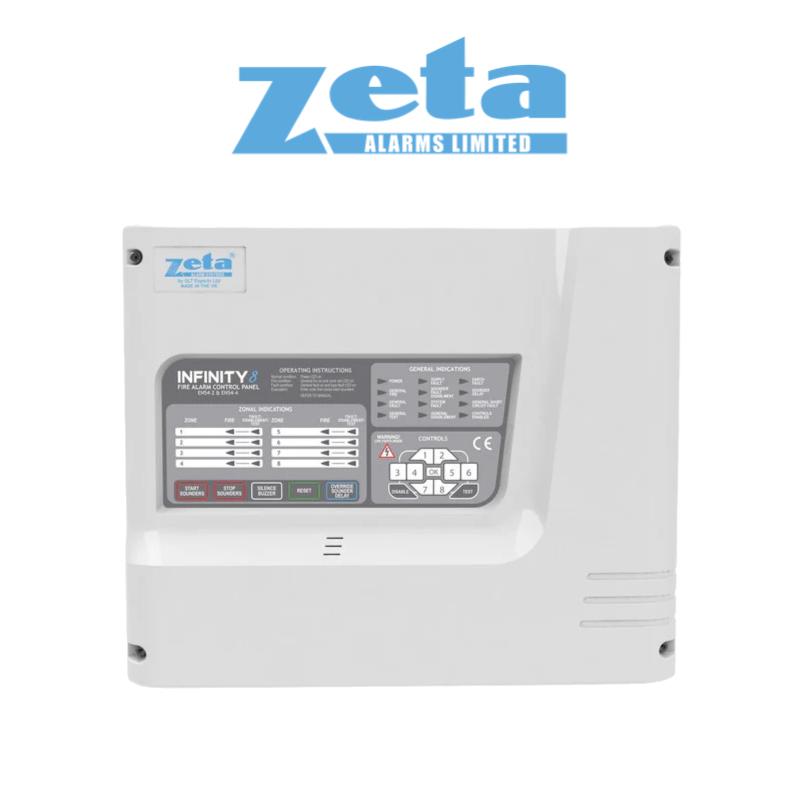

Zeta Infinity Conventional 1-8 Zone Fire Alarm Panel

Features

• Access via password – removes problem of lost keys
• One man test facility
• Diablement facility for zones & sounders
• Space for up to 3Ah batteries
• Sounder delay option
• 4 Sounder circuits on IN4, 6 & 8.
• Sounder circuits 3 and/or 4 can be configured as Aux 24V supplies
• Meets all requirements of latest EN54 part 2 and part 4.

The Infinity control panel is encased in an aesthetically appealing and cutting-edge ABS enclosure, equipped with a switch mode power supply for flame retardant capabilities. Its front cover can be easily removed, providing convenient access for cable installations

Specifications

• Mains Voltage : 230V AC +10% / -15% @ 50/60 Hz
• System Voltage : 24V DC (Nominal)
• Zone Voltage : 21V DC (Nominal)
• Sounder Alarm Output :
• 1-2 Zone : 2 x 150mA @ 24V DC
• 4-8 Zone:  4 x 150mA @ 24V DC
• Fault Relay : 1 x Volt Free Relay, SELV @ 1A Max
• Zone Capacity : 32 Devices Per Zone
• Remote Sounder Operation : Via N/O Contact Connected to Class Change
• Sounder Activation Delay : 0 to 9 Minutes in 1 Minuite Increments
• Zone End of Line : 1N4002 Diode (Cathode Stripe to Zone +ve)
• Sounder End of Line : 10k Resistor
• Charger Voltage : 27.6W
• Battery Cut Off : Battery Voltage Less Than 20V
• Battery Internal Resistance Limit : 0.9 Ohm
• Enclosure Size : 375 x 316 x 90 (mm)
• Weight : 3kg (Excluding Batteries)
• Maxiumum Battery Space : 2 x 3.4AH, 12Vdc Sealed Lead Acid
