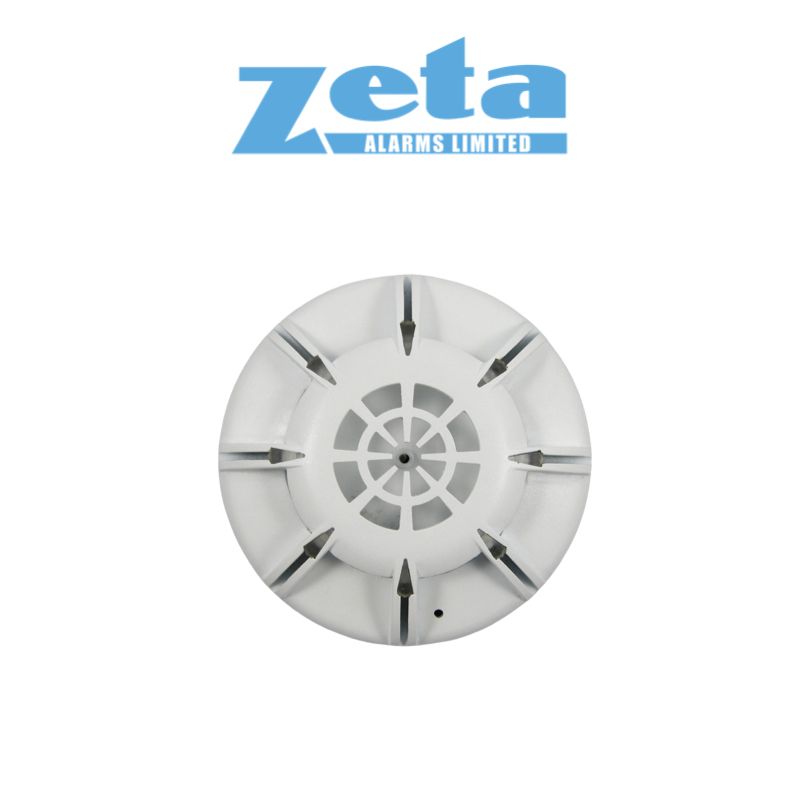

Zeta Fyreye MKII Conventional Fixed Heat Detector MKII-HF

Features

• Certified to meet EN54 requirement
• Lockable to base to stop unauthorised removal
• Remote LED output
• Compatible with all Fyreye bases










  Summary

  The Zeta Fyreye MKII Conventional Fixed Heat Detector MKII-HF employs a singular thermistor configuration to accurately trigger an alarm at a precise 90°C temperature reading.



  The detector is compatible with the majority of contemporary fire alarm control panels and is accompanied by a locking grub screw to deter unauthorized head removalEach Fyreye detector requires a base – view the range of Fyreye Detector Bases

Specifications

• Model : MKII-HF
• Detector Class : Fixed Heat Only
• Design Standard : EN54 part 5
• Approval : DIFT
• Operating Voltage : 9-33V DC
• Quiescent Current : 40 μA
• Alarm Current @ 24V DC : 34mA
• Operating Temperature : -10°C to +50°C
• Minimum Continuous Temperature : 0°C
• Maximum Humidity : 95% RH Non Condensing
• Alarm Condition : Fixed Heat trigger @ 90 °C
• Coverage : 50m2
• IP Protection Rating : IP 43
• Start-up Time :10 Seconds
• Size with Base : 100 x 48mm
• Weight (with Base) : 75g (133g)
