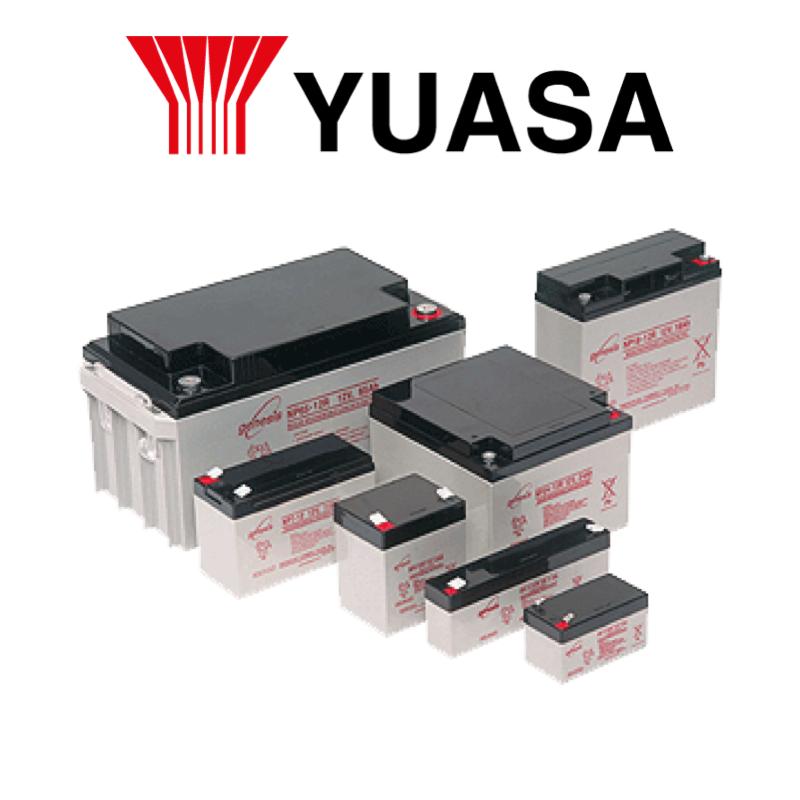

Yuasa Fire Alarm Batteries

• Superb recovery from deep discharge.
• Electrolyte suspension system.
• Gas Recombination.
• Multipurpose: Float or Cyclic use.
• Usable in any orientation (except continuous inverted).
• Superior energy density.
• Lead calcium grids for extended life.
• Manufactured world wide.
• Application specific designs.

Reliability is your security

Yuasa NP, NPC and NPH batteries utilise the latest advance design Oxygen Recombination Technology. Yuasa have applied their 80 years experience in the lead acid battery field to produce the optimum design of Sealed Valve Regulated Lead Acid batteries. Yuasa NP batteries are the most reliable batteries in the world, which is why industry choose Yuasa over any other battery for security, fire, emergency lighting and uninterruptible power source (UPS) applications.

Available Models

• NP1.2-12 - Yuasa NP 1.2Ah 12V Battery
• NP2.1-12 - Yuasa NP 2.1Ah 12V Battery
• NP3.2-12 - Yuasa NP 3.2Ah 12V Battery
• NP7-12 - Yuasa NP 7Ah 12V Battery
• NP12-12 - Yuasa NP 12Ah 12V Battery
• NP17-12 - Yuasa NP 17Ah 12V Battery

• Capacity Ah (20-HR) :
  • 1.2ah (NP1.2-12) : 1.2
  • 2.1ah (NP2.1-12) : 2.1
  • 3.2ah (NP3.2-12) : 3.2
  • 7ah (NP7-12) : 7
  • 12ah (NP12-12) : 12
  • 17ah (NP17-12) : 17
• Case Type : Ind AGM
• Voltage : 12V
• Recommended Charge Rate (Amps) : 0.1
• Length (mm) :
  • 1.2ah (NP1.2-12) : 97
  • 2.1ah (NP2.1-12) : 178
  • 3.2ah (NP3.2-12) : 134
  • 7ah (NP7-12) : 151
  • 12ah (NP12-12) : 151
  • 17ah (NP17-12) : 181
• Width (mm) :
  • 1.2ah (NP1.2-12) : 48
  • 2.1ah (NP2.1-12) : 34
  • 3.2ah (NP3.2-12) : 67
  • 7ah (NP7-12) : 65
  • 12ah (NP12-12) : 98
  • 17ah (NP17-12) : 76
• Height (mm) :
  • 1.2ah (NP1.2-12) : 54.5
  • 2.1ah (NP2.1-12) : 64
  • 3.2ah (NP3.2-12) : 64
  • 7ah (NP7-12) : 97.5
  • 12ah (NP12-12) : 97.5
  • 17ah (NP17-12) : 167
• Weight (kg) :
  • 1.2ah (NP1.2-12) : 0.58
  • 2.1ah (NP2.1-12) : 0.82
  • 3.2ah (NP3.2-12) : 1.1
  • 7ah (NP7-12) : 2.2
  • 12ah (NP12-12) : 4.05
  • 17ah (NP17-12) : 6.1
