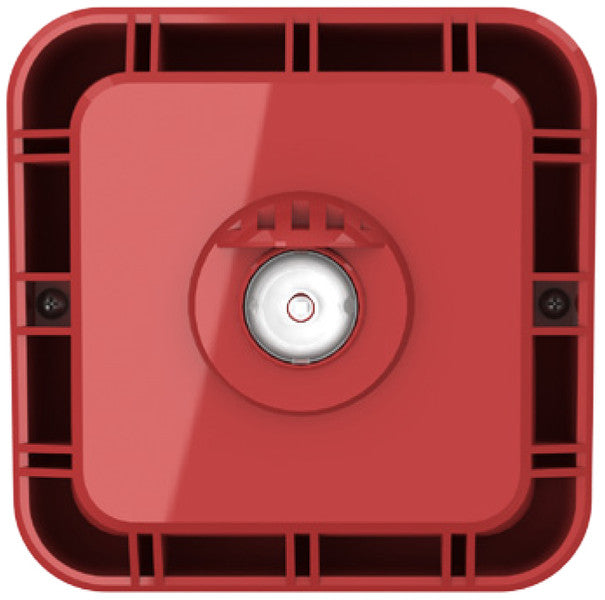

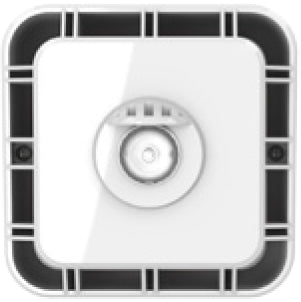

Xtratone MKII Addressable Combined Sounder & Beacon in Red or White
Model No: MKII-AXTB/W
- Sku: MKII-AXTB/R
Tax included.
Shipping calculated at checkout.
Features
- 102dB @ 1m sound output.
- 16 tones can be selected from control panel Flash rates between 0.33Hz and 1.5Hz.
- Hard addressed via 8 way dip-switch.
- Flush or surface fixing.
- Housed in UL V0 flame retardant ABS.
- 4 x 20mm cable entries (2 top, 2 bottom).
- First fix, wire to back box technology.
Specifications
- Operating Voltage : 17 – 28V DC
- Quiescent Current : 1.5mA
- Alarm Current : 18 to 43mA
- Sound Output : 96dB
- Colour :
- Red body, Clear Flash
- White body, Clear Flash
- Minimum Continuous Operating Temperature : 0°C
- Operating Temperature : -10°C To +55°C
- Max Humidity : 95% Rh Non Condensing
- IP Rating : IP21C
- Size :
- Font Plate: 105x 105 x 56mm
- With Back Box - 105 X 105 X 89mm
- Weight : 210g
