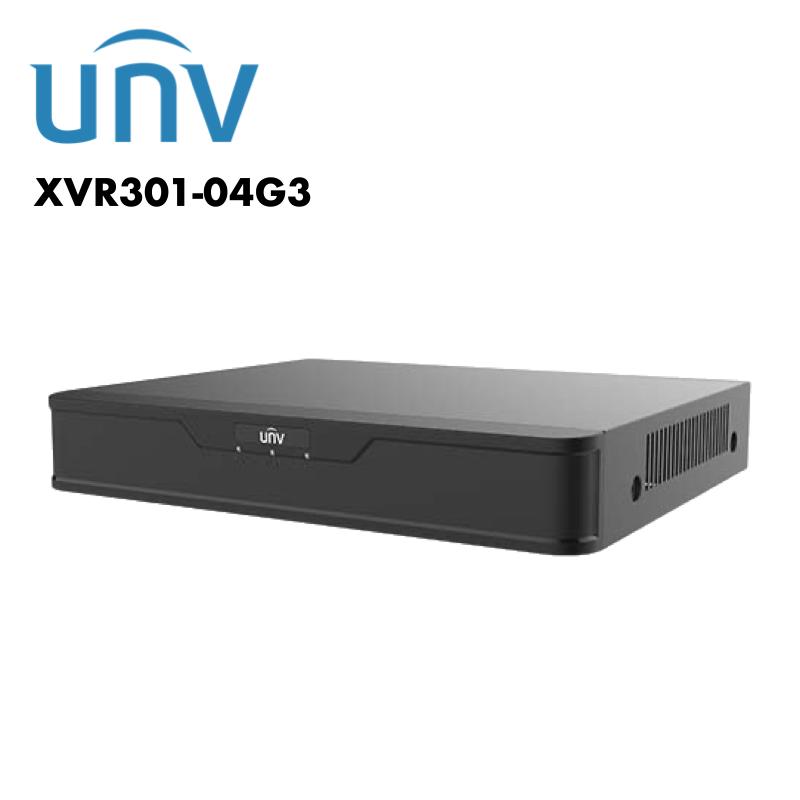

Uniview 4 Channel Hybrid DVR UV-XVR301-04G3

XVR301-G3 Series

Optimize your video surveillance setup with Uniview's XVR301-G3 Series DVRs, providing versatile and powerful recording solutions for a diverse range of needs. These DVRs are compatible with various camera types, such as TVI, AHD, CVI, CVBS, and IP cameras, allowing for flexible system configuration and expansion. Choose from the XVR301-04G3 for smaller setups and the XVR301-08G3 for larger operations.

Key Features:

Compatibility: Supports H.265/H.264 video formats for efficient storage and clear video quality.

Diverse Camera Support: Adaptable access for TVI, AHD, CVI, CVBS, IP cameras, enhancing system versatility.

Audio Over Coaxial: Available for TVI cameras, enabling audio signals over the same coaxial cable as video.

High-Definition Output: Offers 1-ch HDMI and 1-ch VGA outputs at resolutions up to 1920*1080 for crisp, clear display.

Long Transmission: Ensures reliable signal quality over extended coaxial cable distances.

ONVIF and RTSP Support: Facilitates integration with mainstream cameras, ensuring compatibility across devices.

Model-Specific Features:
XVR301-04G3:
4-channel BNC input.
Supports 2-ch IP video input, up to 6 channels in total, each channel up to 4MP.
Analog camera support up to 5MP at various frame rates.
1 SATA interface for up to 8TB HDD capacity.

Network and Storage:

Incoming Bandwidth: 16Mbps for XVR301-04G3 and 32Mbps for XVR301-08G3, expandable for all-analog channel conversion.

Outgoing Bandwidth: 48Mbps for XVR301-04G3 and 64Mbps for XVR301-08G3, supporting large-scale remote access.

Remote Users: Up to 128 concurrent users.

Snapshot and Live View Features: Include scheduled snapshots (not supported) and multi-channel live view display capabilities.

Encoding and Decoding:

Recording Resolutions: Offering a range of resolutions from CIF up to 5MP Lite, depending on the model.

Decoding Capabilities: Designed to handle various resolutions for both analog and IP streams.

Intelligent Features:

Smart Alarm: Includes ultra motion detection (UMD) for analog channels, along with general and alert alarms for comprehensive event monitoring.

VCA Detection and Search: Enhance security with behaviour search and motion detection features.

Connectivity and Construction:

External Interfaces: Feature 1 RJ45 Ethernet interface, 2 USB 2.0 ports for easy data management and device interaction.

Durability and Design: Crafted with a compact and durable chassis, these DVRs are designed for long-lasting, reliable operation in various environments.

The Uniview UV-XVR301-04G3 Hybrid DVR is highly versatile, with advanced recording capabilities and compatibility with a variety of cameras, making it perfect for a diverse range of surveillance needs. From small enterprises to large establishments, this DVR serves as a reliable base for a strong security setup.
