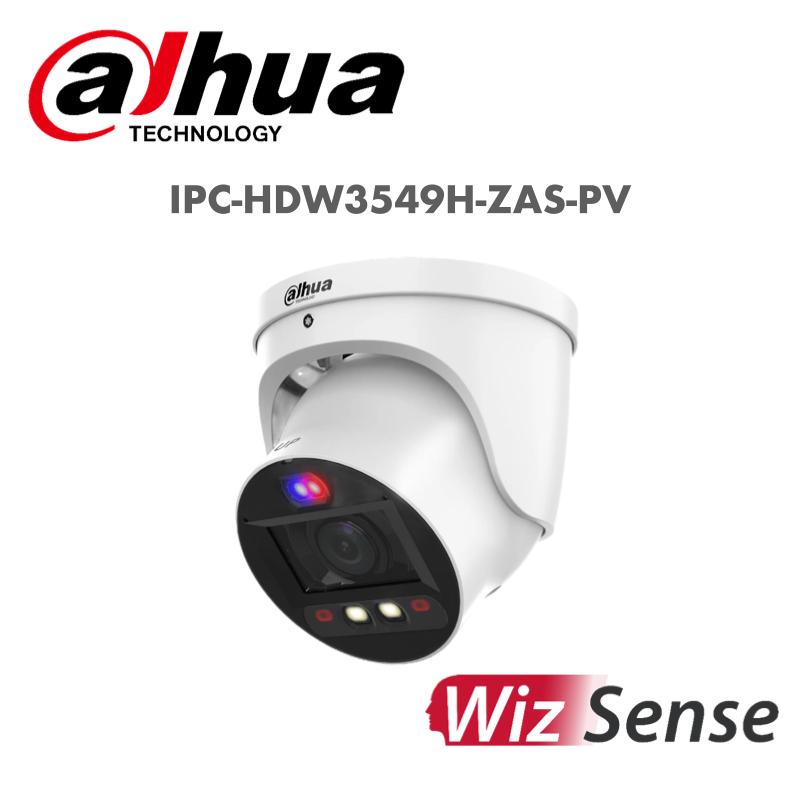

Dahua 5MP Smart Dual Illumination Active Deterrence Vari-focal Eyeball WizSense Network Camera IPC-HDW3549H-ZAS-PV
Model No: IPC-HDW3549H-ZAS-PV
- Sku: IPC-HDW3549H-ZAS-PV
Series Overview
The Dahua WizSense 3 Series Network Camera utilizes AI Coding technology to significantly reduce bandwidth and storage usage. With advanced deep learning algorithms, the camera offers intelligent features like perimeter protection, smart motion detection (SMD), AcuPick, and AI SSA (AI Scene Self-adaptation), providing a user-friendly experience. Additionally, the camera's Starlight technology and large aperture lens ensure high-quality, detailed images in low-light environments.
Functions
Siren and Light Active Deterrence
The Dahua 5MP Smart Dual Illumination Active Deterrence Vari-focal Eyeball WizSense Network Camera IPC-HDW3549H-ZAS-PV offers active deterrence with siren and light features, allowing for a powerful response when perimeter events occur. With customizable voices and the ability to import new ones, this camera is a versatile and effective tool for deterrence and intervention
SMD 4.0
Dahua's Smart Motion Detection utilizes advanced algorithms to accurately categorize potential targets, minimizing false alarms triggered by non-target objects such as animals of varying sizes.
Smart Dual Light
The Dahua 5MP Smart Dual Illumination Active Deterrence Vari-focal Eyeball WizSense Network Camera IPC-HDW3549H-ZAS-PV features innovative Dahua Smart Dual Light technology that utilizes advanced algorithms to detect targets. During nighttime surveillance, the camera's IR illuminator is activated; and when a target is detected within the monitoring area, the white light is triggered, capturing full-color video and key event data. This allows for seamless linking of snapshots and videos with full-color images. Once the target exits the monitoring area, the white light turns off and the IR illuminator remains on, effectively reducing light pollution.
One-tap Disarming
The Dahua IPC-HDW3549H-ZAS-PV camera features a user-friendly One-tap Disarming function for efficient operation and event linkage. Using the mobile App, customers can easily disable or resume event linkage, providing a customizable solution for various scenarios.
Cyber Security
Dahua network cameras utilize various security technologies, such as security authentication, access control protocols, trusted protection, and encrypted transmission and storage, to enhance defense against cyber threats and prevent device compromise by malicious programs.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Specification
*The parameters and datasheets below can only be applied to 3549-PV-S5 series.
> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960×1668) @20 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply.
> IP67 protection.
> Sound and light alarm (red and blue lights).
> SMD 4.0.
> Supports AI SSA and one-tap arming and disarming.
> SMD area can be set in warm light areas that support triggering alarms.
Download DatasheetHave a question?
