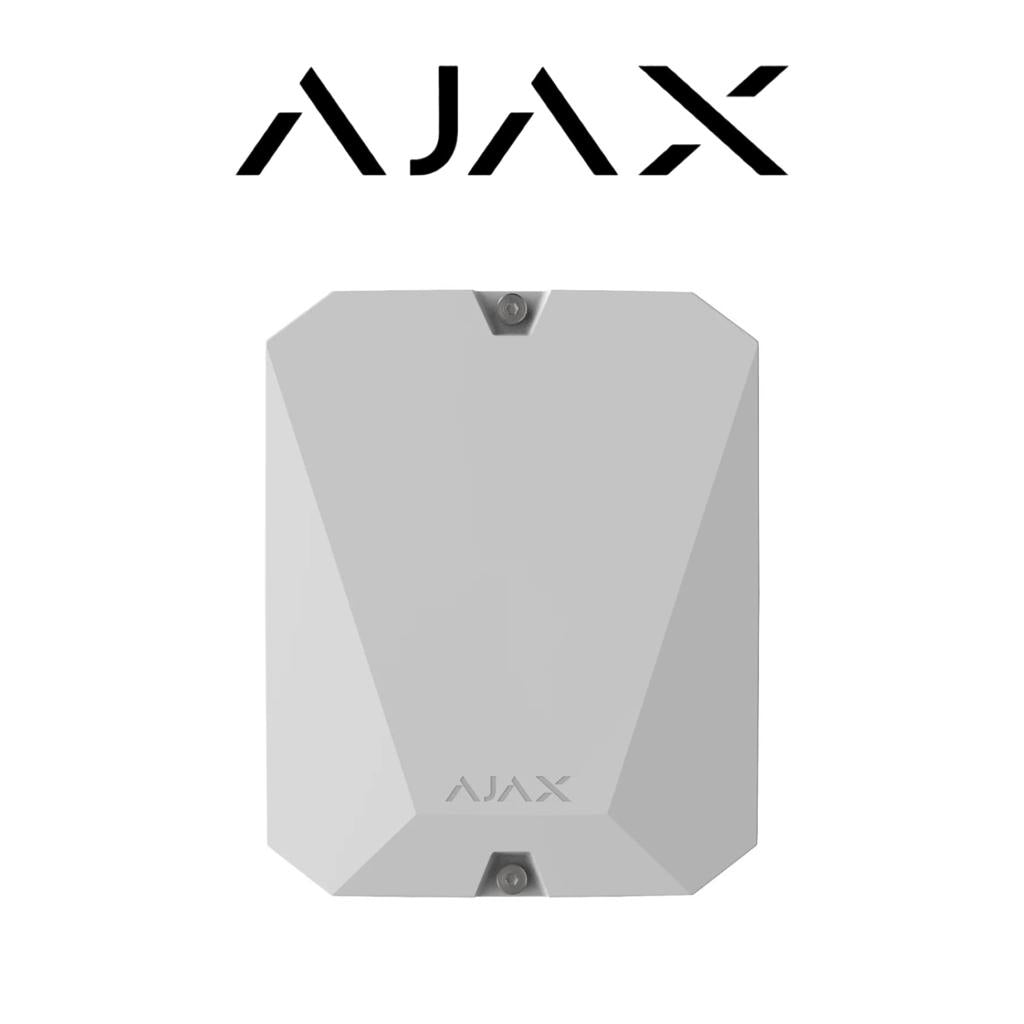

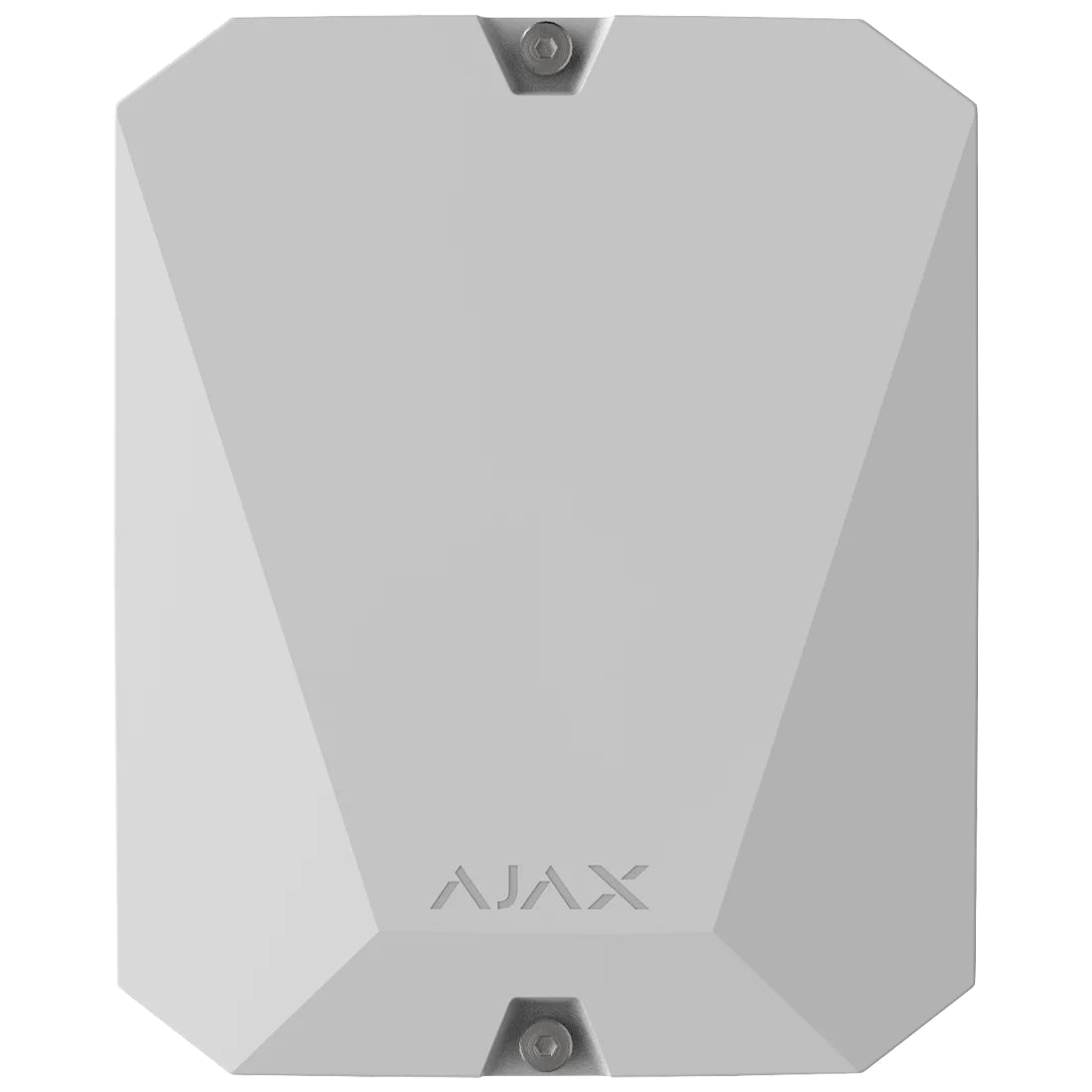

Ajax (44950) MultiTransmitter EOL - Module for Integrating Existing Wired Systems

Connection without limits - The updated version of MultiTransmitter supports NC, NO, EOL, 2EOL, and 3EOL connections. This gives more freedom for installation engineers: any wired detector with dry contacts can be connected to the integration module.
More event types of wired devices

- Intrusion
- Fire Alarm
- Medical Help
- Gas Alarm
- Tamper Alarm
- Malfunction
- Leakage
- Custom Events
The new version of MultiTransmitter allows you to connect wired water leaks detectors to the system. Also, the device can now notify users about a service event, without sending the alarm to the security company’s monitoring station. This can be useful to keep track of the water level in a reservoir or the state of smoke machine service outlets.
Extended EOL resistance value range
Installation engineers can now install EOL resistors with resistances from 1 k? to 15 k? in 30 k? increments. The use of non-standard resistance values strengthens protection against sabotage.
For the convenience of installation engineers, we have provided a tool in Ajax apps that measures the resistance of termination resistors and sets recommended values. It also can be configured in Ajax apps manually with 100 ? increments.
