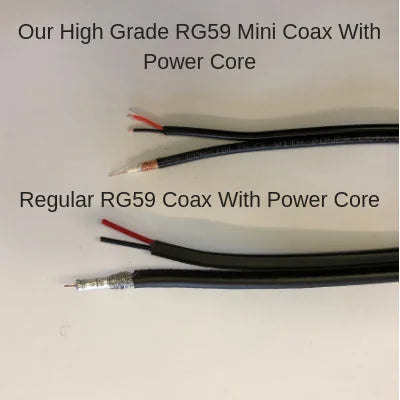

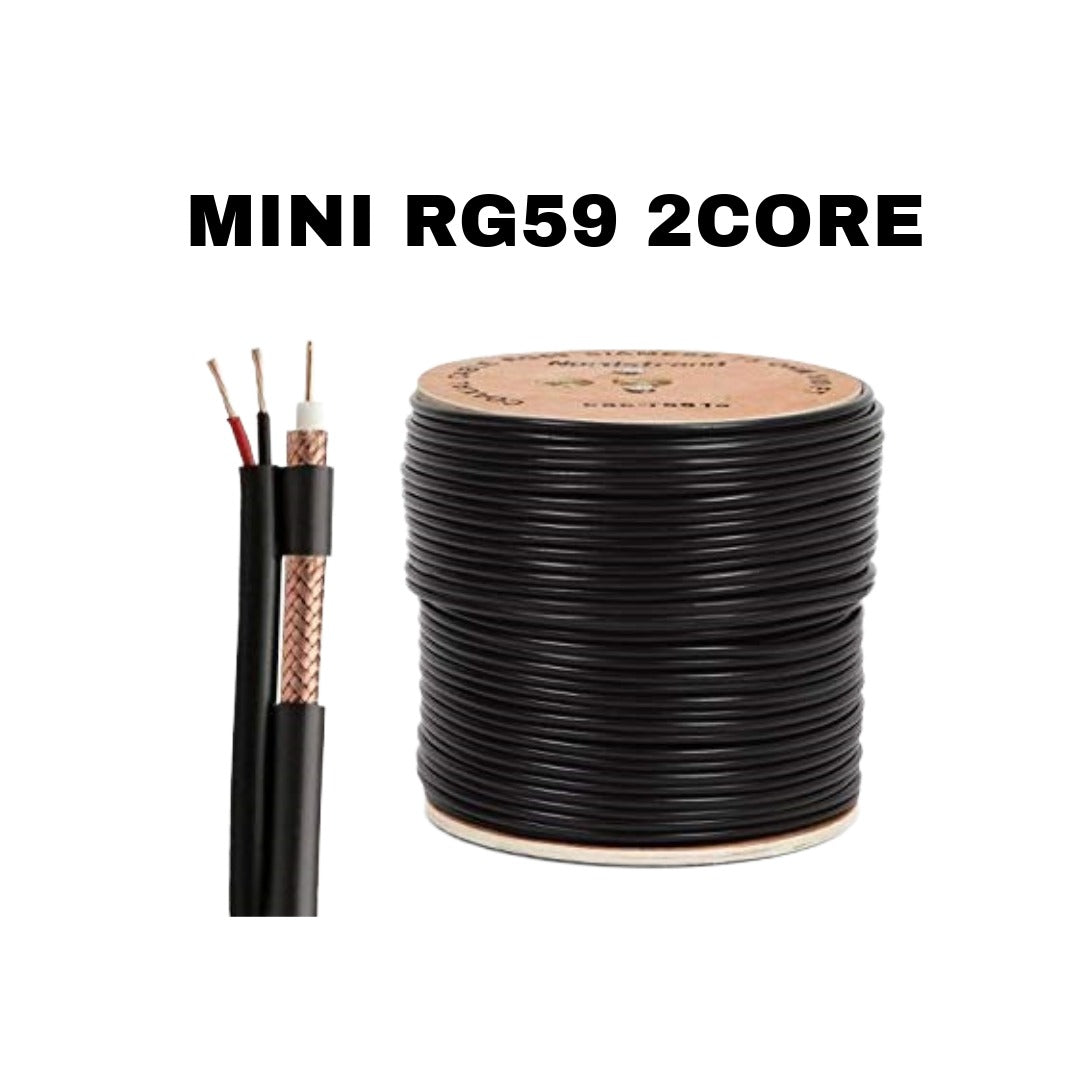

100M Mini RG59 Coax With Power Cores In Black

100M Mini Coax with Power in Black

This cable is suitable to work with the following technologies:

HD-SDI max single cable run 70m

TVI, AHD & CVI max single cable run 200m

Specification:

RG59:

• Inner Conductor: 0.404mm Bare Copper
• Insulation Material:2.0mm Foam PE
• Outer Conductor: CCA80/012mm Braid 95%
• Jacket: 3.6mm PVC

Power Cores:

• Inner Conductor: 16/0.15 x 2 Bare Copper
• Insulation: PE 1.2mm (Red/Black)
• Jacket: 3.6mm PVC
