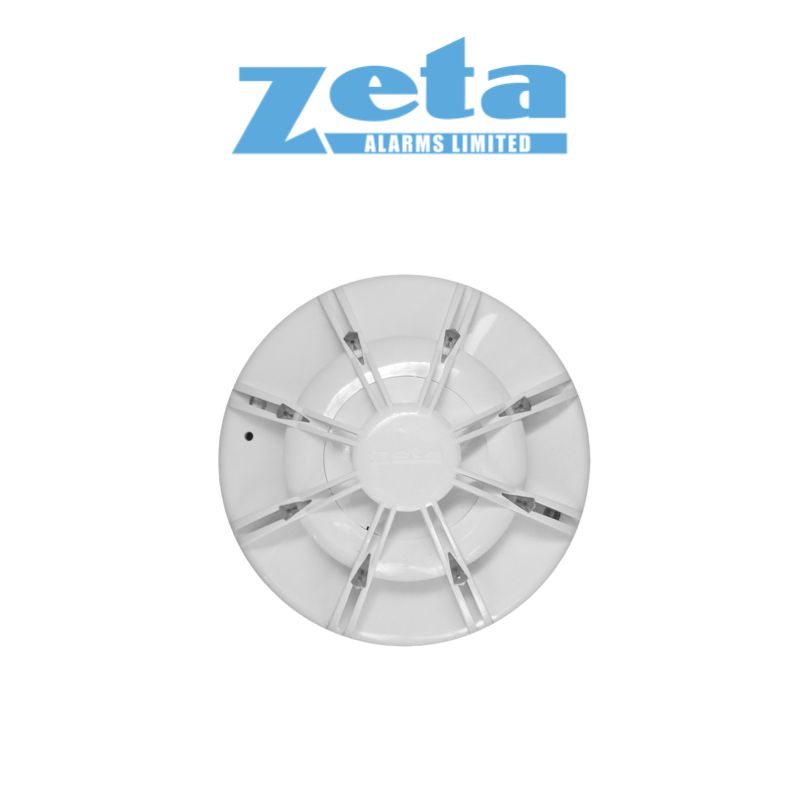

Zeta Fyreye MKII Combined Smoke and Heat Detector MKII-OH

Features

• Certified to meet EN54 requirement
• Lockable to base to stop unauthorised removal
• Remote LED output
• Compatible with all Fyreye base




• Summary

  The Zeta Fyreye MKII combines both optical and heat detection technology, utilizing advanced discrimination algorithms. This dual sensor is an ideal alternative to ionisation detectors.

  Each Fyreye detector requires a base – view the range of Fyreye Detector Bases

• Specifications

  • Model : MKII-OH
  • Detector Class : Combined Smoke & Heat
  • Design Standard : EN54 parts 5 & 7
  • Approval : DIFT
  • Operating Voltage : 9-33V DC
  • Quiescent Current : 40μA
  • Alarm Current @ 24V DC : 34mA MAX
  • Operating Temperature : -10°C to +50°C
  • Minimum Continuous Temperature : 0°C
  • Maximum Humidity : 95% RH Non Condensing
  • Alarm Condition : 2.4% Obscuration per metre OR Rate of rise OR fixed heat trigger @ 57°C
  • Coverage : 100m2
  • IP Protection Rating : IP43
  • Start-up Time : 10 Seconds
  • Size with Base : 101 x 64mm
  • Weight (with Base) : 75g (133g)
