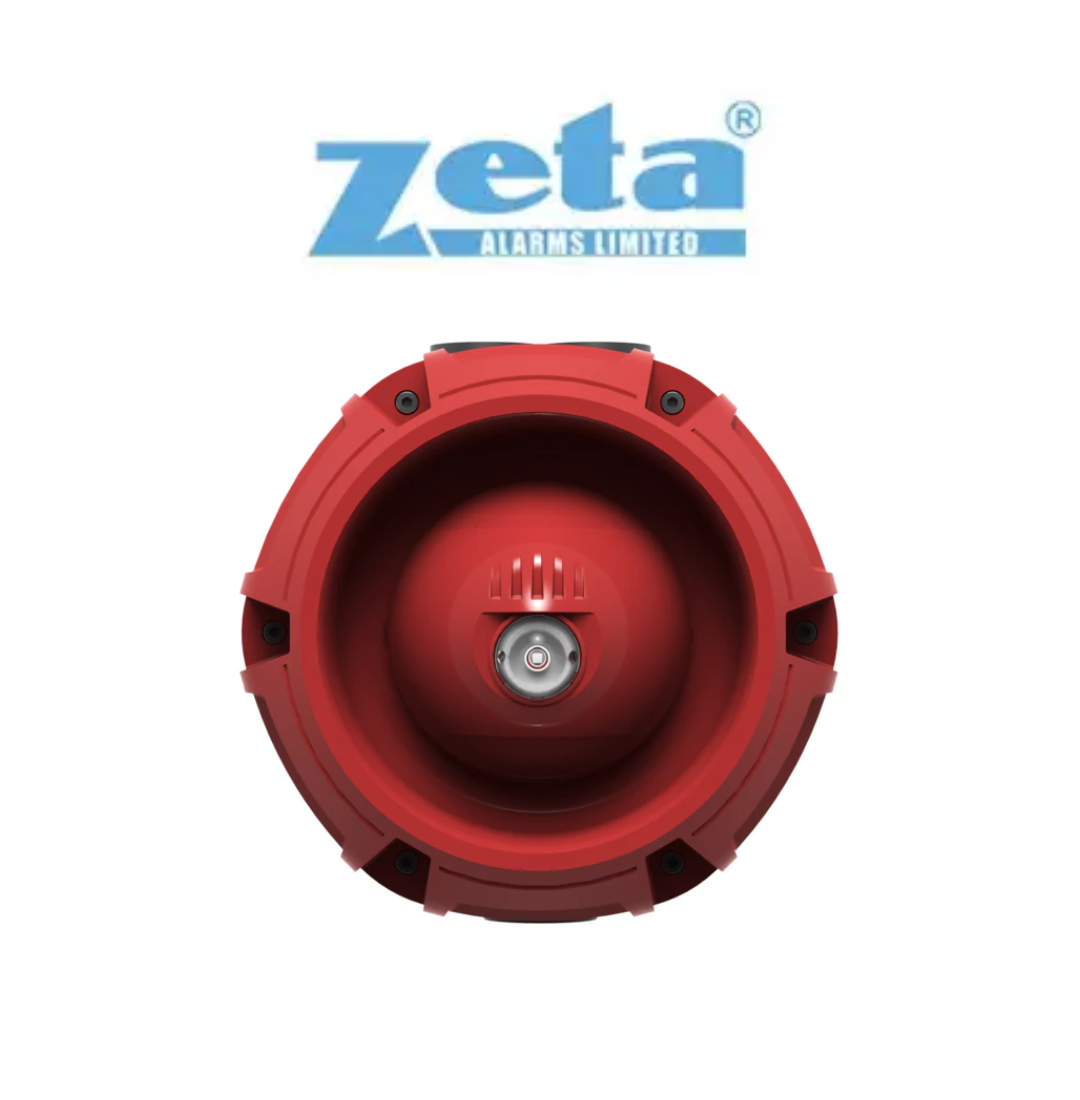

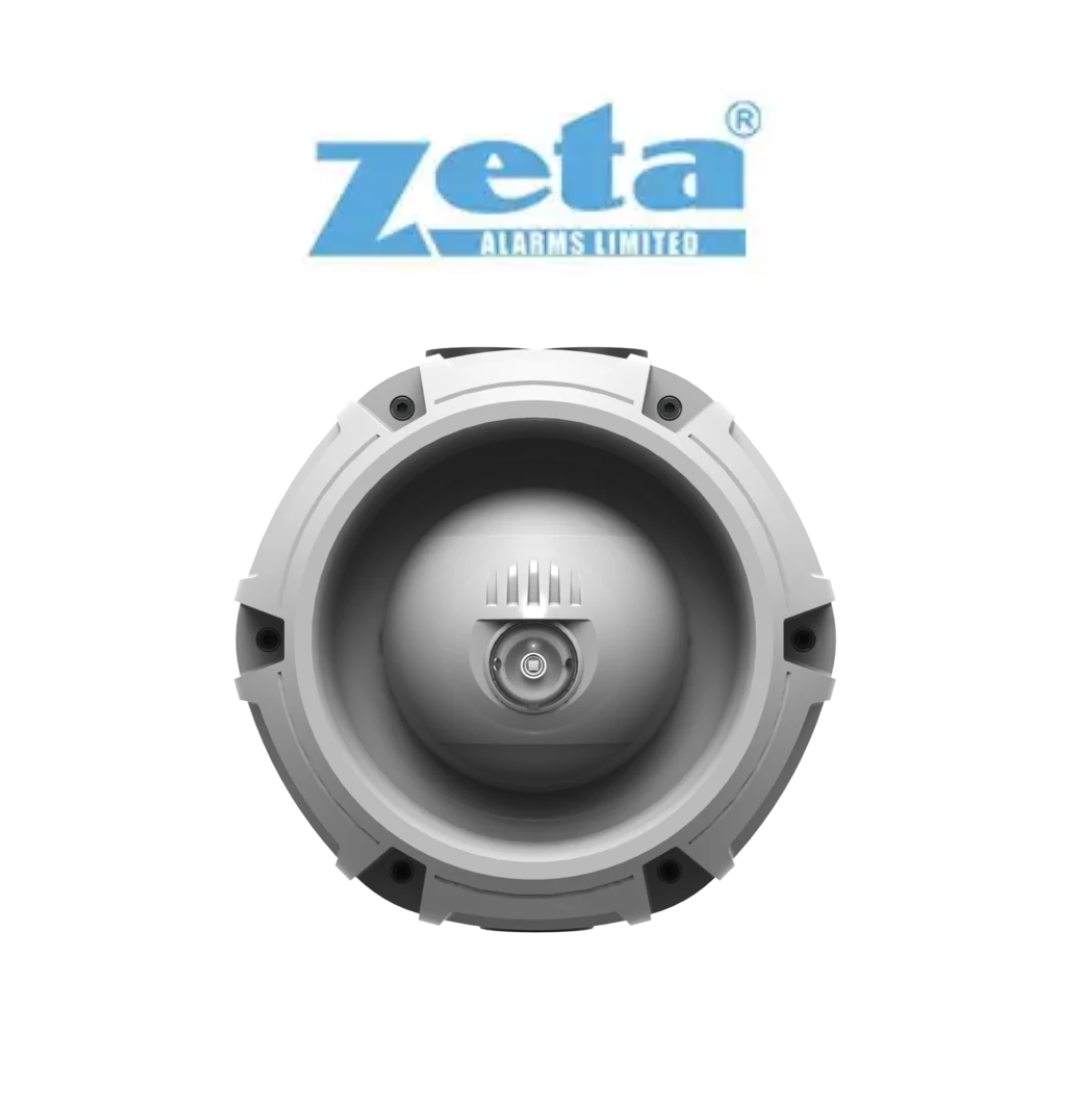

Raptor MKII Addressable Weatherproof Combined Sounder & Beacon in Red or White

Description

Features

• Complies with EN54 Pt 3 Type B & EN54 Pt 23.
• 107dB +/- 3dB @ 1m sound output.
• 16 Tone patterns (site selectable).
• Suitable for surface mounting only.
• Housed in UL V0 flame retardant ABS.
• 3 x 20mm cable entries (2 top, 1 bottom).
• First fix, wire to back box technology.
• Flashing rate 0.5Hz.

Specification

Specifications

• Voltage : 17 - 28V DC
• Quiescent Current : 1.5mA
• Alarm Current : 18-43mA
• Flash Colour : White
• Flash Frequency : 0.5Hz
• Body Colour : Red or White
• Sounder Type : B
• IP Rating : IP 65
• Operating Temperature : -10ºC to 55ºC
• Sound Output @ 1m : 100dB
• Size mm : 150 x 146 x 107.5
• Weight : 550g

Datasheet

Download Datasheet
